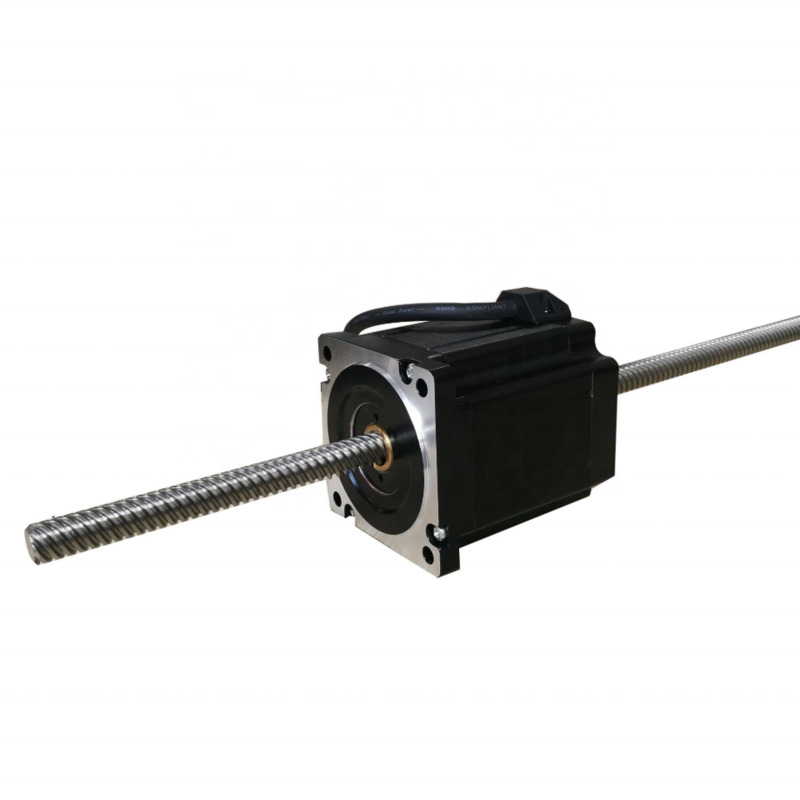

86MM Linear Actuator Lead Screw NEMA 34 Stepper Motor 34HS2403-250T144

1 Piece
MOQ
$98.00(1 - 49 Pieces) $90.00(>=50 Pieces)
Price
86MM Linear Actuator Lead Screw NEMA 34 Stepper Motor 34HS2403-250T144
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 34HS2403-250T144
Phase: 2
Type: Hybrid
Current / Phase: 4.5A
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: 34HS2403-250T144
Payment & Shipping Terms
Packaging Details: Carton package
Product Description
Product Description

Genaral Specification:
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 110 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 75N (20mm from the flange)
Max. axial force 15N

Lead Screw Specification:
Lead Screw Length: 250m
Lead Screw Diameter: 14mm
Pitch: 2mm
Number of Leads: 2
Weight : 3.5Kg

Step Angle
18 degree
Motor Length
100
Current/Phase
4.5A
Holding Torque / Nm
5N.m
No. of Leads
4
Resistance/ Phase
1mH
Mass
3.5Kg
Voltage
2.9V
Size Information
NEMA 11 stepper motor catalog
Applications

3D printer

CNC milling machine

CNC laser machine

Main Product
Closed Loop stepper motor
Hybrid Stepper Motor
PM Captive stepper Motor
Stepper Motor Driver
Linear Stepper Motor
Captive Stepper Motor

Ball Screw Stepper Motor


Linear Guideway

Switching Power Supply
