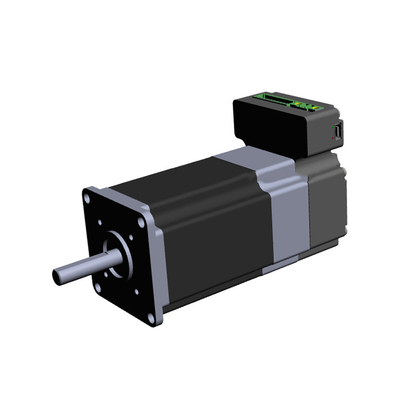

Datasheet of the integrated easy servo motor
IC57-22/IC57-10 smart automation stepper motor
Easy servo control technology to combine advantages of open-loop stepper systems and brushless
servo systems
Closed-loop controls to eliminate lose of steps, stall or movement synchronization
Integrated compact size for saving mounting space & setup time, and reducing electrical interference
1000-line integrated optical incremental encoder for accurate position control
High starting torque and quick response
Smooth motor movement with no vibration
Excellent respond time, quick acceleration, and very high high-speed torque (50% over open-loop)
Load-dependent dynamic current output from drive to motor to significantly motor heating deduction
Input voltage from 20 to 50 VDC; 8.0A peak current output from drive to motor
2.2 Nm or 1.0Nm holding torque stepper motor with NEMA 23 frame size installation
16 micro step resolution options via DIP switches; or any value from 200-51,200 (increased by 1) via
software configuration
Isolated control inputs of Pulse, Direction and Enable
No tuning for plug and play setup
In-position and fault outputs to external motion controllers for complete system controls.
Over voltage, over-current, and position-error protection
Operating Environment
Motor Specifications
Mechanical Specifications
RS232 Communication Cable Connections
Note1: The RS232 communication port is not isolated. Please use an isolated power
supply for the IC57xx when the PC s serial port is not isolated.
Note2: Do not plug or unplug the connector when power is on.
