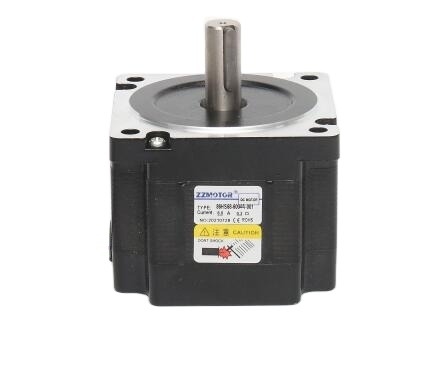

Machinery Industry High Torque 1.8 Degree Low Noise NEMA 34 Stepper Motor 86HS68-4004A Hybrid Stepper Motor For Machine

1 Piece
MOQ
$29.90(1 - 99 Pieces) $24.50(100 - 499 Pieces) $21.90(>=500 Pieces)
Price
Machinery Industry High Torque 1.8 Degree Low Noise NEMA 34 Stepper Motor 86HS68-4004A Hybrid Stepper Motor For Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year, One Year
Model Number: 86HS68-4004A
Phase: 2, 2
Type: Hybrid
Current / Phase: 4.0A
Certification: CE ISO ROHS
Brand: ZZ-motor
Function: Machinery Industry
Product Name: 86HS68-4004A
Diameter: 86mm*86mm
Motor Length: 68mm
Motor Weight: 2kg
Basic Infomation
Certification: CE ISO ROHS
Model Number: 86HS68-4004A
Payment & Shipping Terms
Packaging Details: 1. Carton box with foam 2.Box can be customized as you require
Supply Ability: 800 Box/Boxes per Week
Product Description
Product Description
Electrical Performance
Step Accuracy ±5%
Temperature 85℃ Max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩMin 500VC DC
Dieletric Strength 500VAC 1 minute
Electrical Specifications
电机型号
Model
机身长
Length L mm
相电流
A/phase
相电阻
Ω/Phase
相电感
m H/phase
静转矩
Holding Torque
      N.m
转动惯量
Rotor Torque
kg.c㎡
引线数
Lead wire
NO.
电机重量
Motor weight
kg
86HS68-4004A
68
4.0
0.63
3.2
2.6
0.85
4
2
86HS80-6004A
75
6.0
0.38
3.5
4.5
1.05
4
2.5
86HS80-4208A
75
4.2
0.72
3.5
3.5
1.05
8
2.5
86HS98-5004A
98
5.0
0.5
4.0
6.8
1.55
4
3.0
86HS116-6004A
114
6
0.6
6.8
8.5
1.8
4
3.5
86HS116-5008A
114
5
0.75
3.2
5.8
1.8
8
3.5
86HS128-5004A
128
5.0
0.6
5.0
9.0
2.2
4
3.9
86HS155-6004A
150
6
0.75
8.5
11
2.5
4
4.2
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linear motor and drivers. The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments, subway equipments.,surveillance products,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers.
our Certification
Packing&Shipping
Packing Packaging Details: Cartons and pallets Port:ShangHai Lead Time :20 days Delivery 1.Carton box with foam 2.Box can be customized as you require 3.Usually 15-30days.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% T/T in advance
