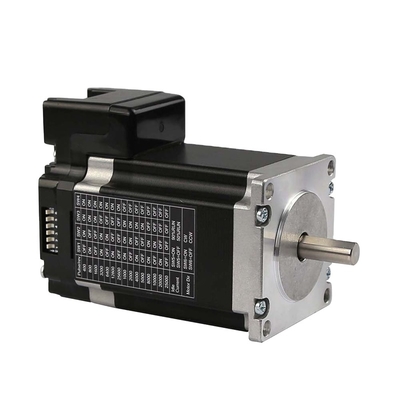

Product Name | built-in braking stepper motor 57HS56-3004A |
Material | metal |
Function | machinery industry, medical instruments, laboratory equipments, home application |
Package | foam and box |
characteristic
1. Bipolar constant-current chopper current control
2. Subdivision interpolation function, smooth motor operation
3. Flexible subdivision Settings to meet more occasions
4. The instruction signal is compatible with 3.5-24V and no series resistance is required
5. The stepper motor is equipped with locking device to prevent axial movement
电机型号 model | 机身长 length mm | 相电流 A/phase | 相电阻 Ω/phase | 相电感 m H/phase | 静转矩 holding torque N.M | 转动惯量 Rotor inertia g c㎡ | 引线数 lead wire NO. | 电机重量 motor weight g |
57HS41-1504A | 41 | 1.5 | 1.2 | 2.5 | 0.55 | 150 | 4 | 470 |
57HS56-1504A | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 280 | 4 | 590 |
57HS56-3004A | 56 | 3.0 | 1.1 | 3 | 1.0 | 280 | 4 | 680 |
57HS76-3004A | 76 | 3.0 | 0.5 | 2.4 | 1.6 | 440 | 4 | 1050 |
57HS84-3004A | 84 | 3.0 | 0.57 | 2.5 | 2.0 | 530 | 4 | 1130 |
57HS100-3004A | 100 | 3.0 | 0.89 | 3.4 | 2.4 | 680 | 4 | 1250 |
57HS112-3004A | 112 | 3.0 | 1.6 | 6.8 | 2.5 | 800 | 4 | 1400 |
57HS112-4204A | 112 | 4.2 | 0.9 | 3.8 | 2.5 | 800 | 4 | 1400 |
minimum value | Typical values | maximum value | unit | |
The power supply voltage | +18 | +24 | +48 | VDC |
The output current | -- | -- | 4.5 | Amps |
PUL step instruction pulse frequency | 0 | -- | 200 | KHz |
PUL step instruction pulse width T1 | 500 | -- | -- | ns |
DIR directional instruction lead time T2 | 50 | -- | -- | ns |
PUL step instruction response time | -- | 1/2 Instruction cycle | -- | -- |
EN offline instruction response time T3 | -- | 4 | -- | ms |
Control signal level | +3.5 | +5 | +28 | VDC |
Overtemperature alarm threshold | -- | -- | +80 | ℃ |
