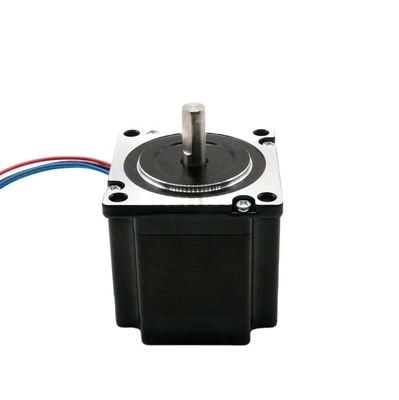

NEMA 23 Automation Equipment Manufacturer 2 Phase Hybrid Stepper Motor With 1.8 Degree Step Angel

1 Piece
MOQ
$14.80(1 - 9 Pieces) $11.90(10 - 99 Pieces) $10.90(100 - 999 Pieces) $9.85(>=1000 Pieces)
Price
NEMA 23 Automation Equipment Manufacturer 2 Phase Hybrid Stepper Motor With 1.8 Degree Step Angel
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Model Number: PST57H255-4P30
Phase: 2, 2
Type: Hybrid
Current / Phase: 3A
Frame Size: 57mm
Color: Black HB
Length: 55.5mm
Connection Type: Connector
Application: Automation Equipment
Torque: 1
Resistance/Phase: 0.7 Ohms
Certification: Ce, ISO, RoHS
Basic Infomation
Certification: ce, ISO, RoHS
Model Number: PST57H255-4P30
Payment & Shipping Terms
Packaging Details: Inner package is EPE foam, the outer package is carton. Generally carton size:39cmx25cmx24cm Carton size also can be customized according to the customer's requirements.
Supply Ability: 250000 Piece/Pieces per Month
Product Description
Specification

Manufacturer of Nema 23 2 Phase Hybrid Stepper Motor with 1.8 degree Step Angel
Model
PST57H255-4P30
Holding Torque (N.m)
1.2
Rated Current (A/Phase)
3
Resistance  (Ω/Phase)
0.7
Inductance (mH/Phase)
2.4
Inertia (g.cm2)
280
Weight (kg)
0.72
Length(mm)
55.5
Please note: This outline shows a dual-shaft motor
The single-shaft motor does not have the blue part shaft and the blue part shaft and the * mark hole demensions
Advantages:
* High Torque: Usongshine stepper motor Adopting high quality motor steel material, is provided with high torque , low self-inductance reactance, responsive and can avoid system error.Low loss stators have better high speed performance.
* Low Resistance: Usongshine stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor. This effectively reduces the increase in temperature.
* Wide Application: This small stepper motors can be used in various area, such as 3D printer; stage lighting; laser engraving;
textile machinery; medical equipment; placement machine; non-standard equipment; automation equipment etc.
* Excellent Service: CE certified:Each nema 17 stepper motor has undergone a rigorous quality control ex works . If need further
Typical Applications:
Automation and inspection
• Conveyor transfer
• Cut-to-length metal, plastic, fabric, etc
• Industrial HVAC
• Material handling
• Medical equipment
• Office peripheral equipment
• Packaging systems
• Pick-and-place applications
• Printing systems
• Robotics
• Semiconductor manufacturing
• Many others
Company Profile
CHANGZHOU PROSTEPPER CO.,LTD. specializes in offering 2-Phase, 3-Phase hybrid
stepper motors, covering a wide of applications with a frame size of NEMA8 to 42. Made of high quality cold roll sheet copper and anti-high temperature magnet, all of Proatepper’s hybrid steppers are a complete design of high reliabilityhigh accuracy, and featuring low noise, low vibration, low motor heating and smooth run. Besides conventional solutions, custom housing and winding, shaft modification, as well as encoder, brake, gearbox adders are also available to optimize the product's performance for you needs.
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper’s commitment to customers.
Packing & Delivery
Package
Frame Size(mm)
Motor Size(mm)
Carton Size(cm)
Package(sets/carton)
42
 full series
39*25*24
(10*4)40

57
below 55
39*25*24
(8*3)24
more than 55
39*25*24
(5*3)15

60
below 56
39*25*24
(8*3)24
more than 56
39*25*24
(4*3)12
85/86
full series
32*30*14
2
packing size is 39cmx25cmx24cm. You can choose airexpress DHL, UPS, Fedex or other airexpress.
FAQ
1. What is the warranty for your products?
A1:One year warranty for all electronic products.
If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.


2. How can we know the product quality?
A2:We suggest you to order a sample. Also, we you can send us email for detail photos for checking if you cannot get enough information in the product page.

3. How can we get your catalog?
A3.Please go our home or contact directly.

4. Is this your final price? May I have the discount?
A4:All products will according to the quantity
5. Can we visit your factory?
A5: Yes, we are looking forward to arrival customers.
