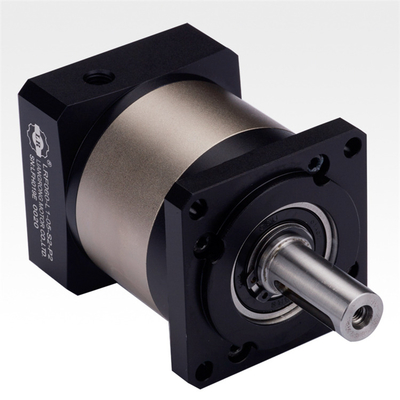

Factory High Precision 3:1 Ratio Planetary Gear Reducer 8arcmin Gearbox for 100w 200w 400w NEMA23 Servo Motors Stepper Motors

2 Pieces
MOQ
$67.20(2 - 9 Pieces) $63.00(10 - 49 Pieces) $57.75(>=50 Pieces)
Price
Factory High Precision 3:1 Ratio Planetary Gear Reducer 8arcmin Gearbox for 100w 200w 400w NEMA23 Servo Motors Stepper Motors
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining, Advertising Company
Customized Support: OEM
Gearing Arrangement: Planetary
Output Torque: 15.8Nm
Input Speed: 4000rpm
Output Speed: 1300rpm
Type: Planetary Gearbox
Speed Ratio: 3:1
Input Bore: 14mm Or 8mm
Output Shaft: 14mm
Gearbox Length: 112mm
Backlash: Less Than 8arcmin
Max Input Speed: Less Than 8000rpm
Protection Grade: IP65
Full Load Efficiency: 96%
Noise(dB): ≤58
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Product Description
Specification
Model
LRF60-3
Type
planetary gearbox
speed ratio
3:1
Input bore
14mm
Output shaft
14mm
Gearbox Length
112mm
Backlash
less than 8arcmin
Input Flange
nema 24
Max input speed
less than 8000rpm
Noise(dB)
≤58
Protection Grade
IP65
Full load efficiency
96%
Other speed ratio
3/4/5/7/16/20/25/28/35/40/50/80/100:1
Appllication to
NEMA23 Stepper motor and servo motor, NEMA24 stepper motor and sservo motor
Place of Origin
China
