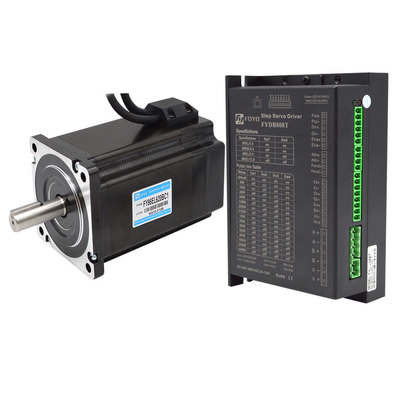

NEMA 34 Closed Loop Stepper Motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V Stepper Servo Driver FYDB808T For CNC Router 150x97.5x53mm

1 set
MOQ
NEMA 34 Closed Loop Stepper Motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V Stepper Servo Driver FYDB808T For CNC Router 150x97.5x53mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: FY86EL620BC1
Phase: 2
Type: Hybrid
Current / Phase: 6.2A
Product Name: Nema 34 Closed Loop Stepper Motor
Holding Torque: 8.2N.m
Motor Length: 134mm
Phase Resistance: 0.45Ω
Phase Inductance: 4.7mH
Rotor Inertia: 3600g*cm2
Matched Driver: FYDB808T
Input Voltage: DV24~80v/AC20~70v
Driver Current: 2.0~8.0A/Phase Auto-adjust
Size: 150x97.5x53mm
Certification: Ce, RoHS, FCC
Basic Infomation
Certification: ce, RoHS, FCC
Model Number: FY86EL620BC1
Payment & Shipping Terms
Packaging Details: Using export carton.
Product Description

Nema 34 closed loop stepper motor 8.2N.m 6.2A L=134mm FY86EL620BC1+ DC24~80V stepper servo driver  FYDB808T for cnc router

Product Description

1pcs NEAM34 Stepper Motor: FY86EL620BC1 (8.2N.m, 6.2A, 134mm length)

1pcs FYDB808T Stepp Servo Driver (Votalge: DC24~80V/AC20~70V, Drive Current:2.0~8.0A)

Motor Spec

Model No. FY86EL620BC1
Step Angle 1.8deg
Step Angle  Accuracy ±5%(Full step,no load)
Resistance Accuracy ±10%(20°C)
Inductance Accuracy ±20%(1KHZ)
Temperature Rise 80°C Max(Rated current,2 phase on )
Ambient Temperature -20°C~+50°C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 500VAC for one minute

Length

134mm

Holding Torque

 8.2N.m

Current / Phase

 6.2A

Resistance / Phase

 0.45ohms
Inductance / Phase 4.7mH
Rotor Inertia 3600g.cm2
Weight 5.0Kg



Driver Spec

Series Model Voltage(V) Rated Current(A) Subdivision Highest Pulse Frequency Dimension(mm)
FYDB808T DC24~80V/ AC20~70V

     2.0~8.0A         phase auto-adjust

     51200 steps/rev   16 gear adjustable 250Kpps 150x97.5x53
