3D Printer Mini Stepping Motor Hybrid Stepping Two Phase Motor Micro Stepper Motor Used by Professional CNC Supplier

60 Pieces
$4.50(60 - 599 Pieces) $4.40(600 - 5999 Pieces) $4.30(>=6000 Pieces)
3D Printer Mini Stepping Motor Hybrid Stepping Two Phase Motor Micro Stepper Motor Used by Professional CNC Supplier
Features Gallery Product Description Request A Quote
Warranty: 3months-1year
Model Number: 17HS8401
Phase: 2
Type: Hybrid
Current / Phase: 1.8A
Size: 42*42*48mm
Rated Current: DC 1.8A/Phase
Positioning Torque: 26 MN.m REF
Insulation Resistance: ≥100 MΩ (DC 500V)
Voltage: 12V-24V
Application: 3D Printer ,Medical Machine ,Robot
Certification: Ce, ISO, RoHS, CCC
Basic Infomation
Certification: ce, ISO, RoHS, CCC
Model Number: 17HS8401
Payment & Shipping Terms
Packaging Details: Bubble Filim and Carton
Supply Ability: 1000 Carton/Cartons per Day
Product Description
Product Description

2-phase Mini Stepping Motor Hybrid Stepping Motor micro stepper motor Used By Cnc Professional Supplier

Product details

Size 42*42*48mm
Rated Current DC 1.8A/Phase
Positioning Torque 26 mN.m REF
Insulation resistance ≥100 MΩ (DC 500V)
Voltage 12V-24V
Application 3D Printer ,Medical Machine ,Robot

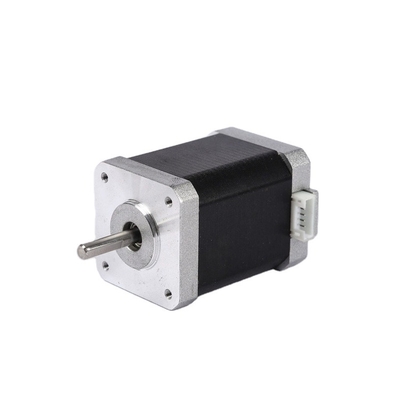

This Nema 17 stepper motor with size 42x42x48mm

It has 4 wires , each phase draws 1.8A , with holding torque 520mN.m
This is the most popular Nema 17 model. It with 1.8 deg. step angle (200 steps/revolution). Each phase draws current 1.8A at 12V-24V,allowing for a holding torque of 52Ncm.
Warning : Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

1 How to choose a motor to match my machine?

Please give us the key parameters of the motor: holding torque, physical size (diameter ,length etc.),  voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.

2 If I need a special motor , can you manufacture?

Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution for you.

3 Can I order samples first?

We stock many of our standard models. If you would like to test a sample first, we are glad to send it.For customization it always takes 5 to 7 days.
