3 / Stepper Motor 4 Axis Kit 3nm 112mm Nema23 CNC Stepper Motor Driver + dm542 Motor + 34v 36v Power Supply For Nema Stepper Motor Kits 23 of CNC machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR
Model Number: Nema 23 Stepper Motor Kits
Phase: 2
Type: Hybrid
Current / Phase: 4.2A
Product Name: Nema 23 Stepper Motor
Step Angle: 1.8 Degree
Motor Length: 41mm~112mm
Current: Customized
Resistance: 0.7Ω - 7.1Ω
Inductance: 1.4mH - 8.2mH
Holding Torque: 0.39N.m - 3.1N.m
Number Of Leads: 4 Or 6 Or 8
Detent Torque: 250g.cm - 1200g.cm
Key Words: 3axis 4axis Stepper Motor Kits
Basic Infomation
Model Number: Nema 23 stepper motor kits
Payment & Shipping Terms
Packaging Details: The sample is packed in carton,the batch with plastic pallet
Supply Ability: 10000 Piece/Pieces per Week
Product Description
Specification
Item
Specifications
Step Angle
1.8°
Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100 MΩ Min. ,500VDC
Dielectric Strength
500VAC for 1minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
75N (20mm from the flange)
Max. axial force
15N
Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
# of Leads
Detent Torque
Rotor Inertia
( °)
(L)mm
A
Ω
mH
N.m
No.
Kg.cm
g.cm²
JK57HS41-1006
1.8
41
1
7.1
8
0.48
6
250
150
JK57HS41-2008
1.8
41
2
1.4
1.4
0.39
8
250
150
JK57HS41-2804
1.8
41
2.8
0.7
1.4
0.55
4
250
150
JK57HS51-1006
1.8
51
1
6.6
8.2
0.72
6
300
230
JK57HS51-2008
1.8
51
2
1.8
2.7
0.9
8
300
230
JK57HS51-2804
1.8
51
2.8
0.83
2.2
1.01
4
300
230
JK57HS56-2006
1.8
56
2
1.8
2.5
0.9
6
350
280
JK57HS56-2108
1.8
56
2.1
1.8
2.5
1
8
350
280
JK57HS56-2804
1.8
56
2.8
0.9
2.5
1.2
4
350
280
JK57HS64-2804
1.8
64
2.8
0.8
2.3
1
4
400
300
JK57HS76-2804
1.8
76
2.8
1.1
3.6
1.89
4
600
440
JK57HS76-3006
1.8
76
3
1
1.6
1.35
6
600
440
JK57HS76-3008
1.8
76
3
1
1.8
1.5
8
600
440
JK57HS82-3004
1.8
82
3
1.2
4
2.1
4
1000
600
JK57HS82-4008
1.8
82
4
0.8
1.8
2
8
1000
600
JK57HS82-4204
1.8
82
4.2
0.7
2.5
2.2
4
1000
600
JK57HS100-4204
1.8
100
4.2
0.75
3
3
4
1100
700
JK57HS112-3004
1.8
112
3
1.6
7.5
3
4
1200
800
JK57HS112-4204
1.8
112
4.2
0.9
3.8
3.1
4
1200
800

Above only for representative products, products of special request can be made according to the customer request.

Suitable Power Supply Parameters:
Power Supply Model
Input voltage
Ouput voltage
Power
Weight
Size
S-120-24
AC100-240V
DC24V
120W
0.3kg
129*99*40mm
S-120-24
AC110V/220V
DC24V
120W
0.45kg
199*99*42mm
S-240-24
AC100-240V
DC24V
240W
0.48kg
159*99*42mm
S-240-24
AC110V/220V
DC24V
240W
0.6kg
200*110*50mm
S-480-24
AC110V/220V
DC24V
480W
0.75kg
215*115*50mm
S-200-36
AC110V/220V
DC36V
200W
0.48kg
199*99*42mm
S-360-36
AC110V/220V
DC36V
360W
0.7kg
215*115*50mm
S-720-36
AC110V/220V
DC36V
720W
1.35kg
245*245*65mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

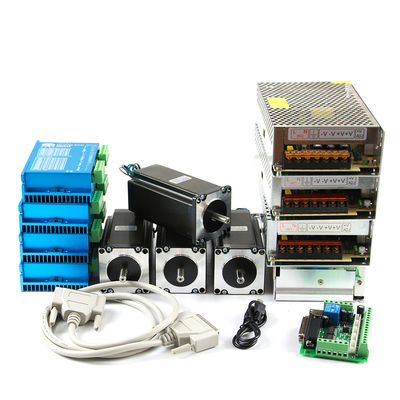

1. 3 or 4 Pcs JK57HS112 (Nema 23 Hybrid Stepper Motor） + 1 / 2 / 3 / 4 Pcs Power Supply + 4 PCS JKDM542 Driver + other parts
Noted： If you need other motor combinations， please send inquiry to us or contact us directly.
No.
Output Voltage
Motor Quantity
Supply Quantity
Driver
Other
1
24V
4pcs stepper motor
1 / 2 / 3 / 4 PCS
4pcs —— JKDM542
board + cable + usb
2
36V
4pcs stepper motor
1 / 2 / 3 / 4 PCS
4pcs —— JKDM542

Motor Features:

1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.

Application:

JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.


Motor Driver Parameters:
Features
Input voltage
18~60V DC
Output current
1.0A~4.2A(Peak)
Input Current
<4A
Humidity
Not condensation, no water droplets
Consumption
80W
Using environment
-10 ~ 45 ℃, avoid dust and corrosive gas
Storage environment
-40~+70℃

Motor Driver Features:

1、Average current control, 2-phase sinusoidal output current drive
2、8 channels output phase current setting
3、Offline command input terminal
4、High start speed
5、High hording torque under high speed
6、High performance, low price
7、Opto-isolated signal I/O
8、Overvoltage, under voltage, overcorrect, phase short circuit protection
9、15 channels subdivision and automatic idle-current reduction
10 、Motor torque is related with speed, but not related with step/revolution

The connection between the driver and the two-phase hybrid stepping motor is four-wire. The motor windings are connected in parallel and in series, and the connection method is good. The high-speed performance is good, but the driver current is large (1.73 times the motor winding current). The drive current is equal to the motor winding current.

The characteristic of the output torque:

1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;
2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;
3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.

4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
