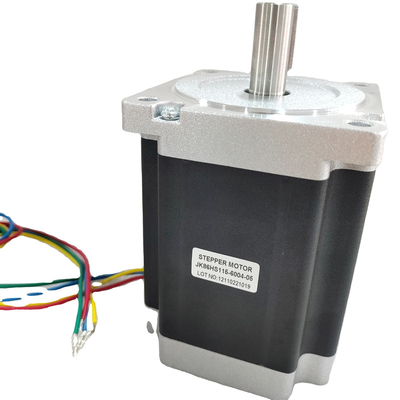

1.8° 86mm NEMA34 2 Phase hybrid stepper motor |
Item | Specifications | ||||
Step Angle | 1.8° | ||||
Temperature Rise | 80℃max | ||||
Ambient Temperature | -20℃~+50℃ | ||||
Insulation Resistance | 100Ω Min. ,500VDC | ||||
Dielectric Strength | 820VAC for 1s 3mA | ||||
Shaft Radial Play | 0.02Max. (450g-load) | ||||
Shaft Axial Play | 0.08Max. (450g-load) | ||||
Max. radial force | 220N(20mm from the flange) | ||||
60Max. axial force | 60N |
Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | Rotor Inertia | Weight | |
(L)mm | A | Ω | mH | N.m | g.cm2 | Kg | |
JK86HS115-6004 | 115 | 6.0 | 0.6 | 6.5 | 8.7 | 2700 | 3.8 |
JK86HS68-594 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 1000 | 1.7 |
JK86HS78-5504 | 78 | 5.5 | 0.46 | 4.0 | 4.6 | 1400 | 2.3 |
JK86HS97-4504 | 97 | 4.5 | 0.66 | 3.0 | 5.8 | 2100 | 3.0 |
JK86HS155-6004 | 155 | 6.0 | 0.68 | 9 | 13 | 4000 | 5.4 |
