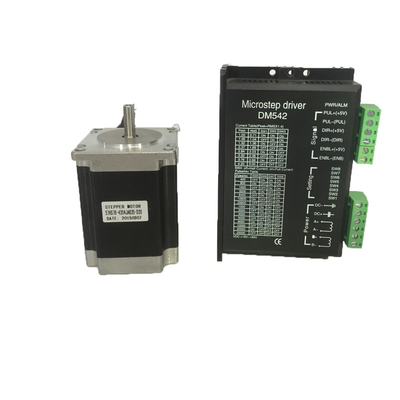

DM542 2-Phase Digital Hybrid Stepper Driver
Features:
1. Adopted 32-bit DSP, pure sine ware subdivision technology
2. Low-noise, low-vibration and low temperature rising (with fan)
3. Voltage 18-50VDC
4. With 8 stalls output current setting, peak current 4.2A
5. With 15 stalls microstep subdivision setting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ
8. Suitable for current range 1.0-4.2A; 2, 4 phase Nema23, Nema 34 hybrid stepper motor
Microstep Selection
Pulse/REV | SW5 | SW6 | SW7 | SW8 |
400 | OFF | ON | ON | ON |
800 | ON | OFF | ON | ON |
1600 | OFF | OFF | ON | ON |
3200 | ON | ON | OFF | ON |
6400 | OFF | ON | OFF | ON |
12800 | ON | OFF | OFF | ON |
25600 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
25000 | OFF | OFF | OFF | OFF |
Current Selection
PEAK | RMS | SW1 | SW2 | SW3 |
1.00A | 0.71A | ON | ON | ON |
1.46A | 1.04A | OFF | ON | ON |
1.92A | 1.36A | ON | OFF | ON |
2.37A | 1.69A | OFF | OFF | ON |
2.84A | 2.03A | ON | ON | OFF |
3.32A | 2.36A | OFF | ON | OFF |
3.76A | 2.69A | ON | OFF | OFF |
4.20A | 3.00A | OFF | OFF | OFF |
Above only for representative products, products of special requirest can be made according to the customer's request.
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
Sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
