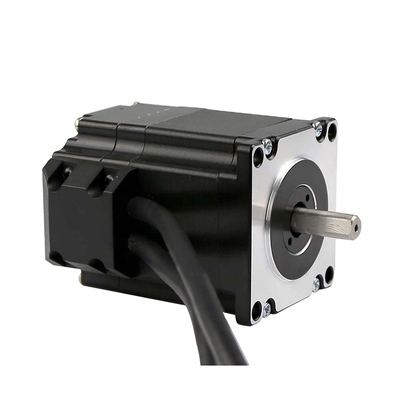

High Torque 1.8 Degree Stepper Motor NEMA 23 Two Phase Hybrid Closed Loop Stepping Motor With Encoder 57HS56-3004A-E1000

1 Piece
MOQ
$23.50(1 - 49 Pieces) $19.20(50 - 199 Pieces) $16.80(>=200 Pieces)
Price
High Torque 1.8 Degree Stepper Motor NEMA 23 Two Phase Hybrid Closed Loop Stepping Motor With Encoder 57HS56-3004A-E1000
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 57HS56-3004A-E1000
Phase: 2
Type: Hybrid
Current / Phase: 3.0A
Name: 57HS56-3004A-E1000
Motor Length: 56mm
Torque: 1.0nm
Weight: 680g
Diameter: 57mm
Brand: Zz-motor
Warranty: One Year
Dielectric Strength: 500VAC 1 Minite
Phase: 2
Certification: Ce, ISO, RoHS
Basic Infomation
Certification: ce, ISO, RoHS
Model Number: 57HS56-3004A-E1000
Payment & Shipping Terms
Packaging Details: 1. Carton box with foam 2.Box can be customized as you require
Supply Ability: 200 Box/Boxes per Week
Product Description
Product Description
Product Name
closed loop  stepper motor 57HS56-3004A-E1000
Material
metal
Function
machinery industry, medical instruments, laboratory equipments, home application
Package
foam and box

  • Electirc performance

  • step accuracy   ±5%

  • temperature      85℃Max

  • Ambient Temperature -20℃~+50℃

  • Insulation Resistance   100ΩMin 500VC DC

  • Dielectric Strength  500VAC 1 minute

  • Inbuilt incremental encoder  1000 line


Electric Specifications
电机型号
model
机身长
length
mm
相电流
A/phase
相电阻
Ω/phase
相电感
m H/phase
静转矩
holding
torque
转动惯量
Rotor inertia
g c㎡
电机重量
motor weight
g
57HS56-3004A-E1000

56

3.0

1.1

3

1.0

280

680
57HS76-3004A-E1000

76

3.0

0.5

2.4

1.6

440

1050
57HS84-4004A-E1000

84

4.0

0.7

2.7

2.0

530

1130
57HS100-42041-E1000
100
4.2
0.9
3.8
2.4
680
1250
57HS112-4204A-E1000

112

4.2

0.9

3.8

2.5

800

1400
Dimensions unit =mm
Product Usage



  • Description of product use effect

The product mainly used in : laboratory equipments, medical instruments, advertising equipments, subway equipments, surveillance products, textile industry and other automation equipments.
Packing&Shipping
Packing
Packaging Details: Cartons and pallets
Port:ShangHai
Lead Time :20 days

Delivery
1.Carton box with foam
2.Box can be customized as you require
3.Usually 15-30days.
Company Introduction
Chang zhou zhongzhi electric Motor and Electric Appliance CO LTD is a leading manufacturer of electric motors and control systems. Our core products include brushless dc motors,stepper motors,brushless DC servo motors, closed-loop hybrid stepper motors,linear motor and drivers.
The products are mainly used in :laboratory equipments. Medical instruments,advertising equipments,subwayequipments.,surveillancproducts,textile industry and other automation equipments
Changzhou zhongzhi motor has become one of the majopr solution provider for domestic and overseas motor and control system market due to its accurate market positioning,highly efficient and professional R&D team as well as high –quality products.
We insist on product innovation and strictly following the iSO9001 procedure and Rohs standard,our six series core products have been certified by CE and widely exported to Europe and many other countries.
Thanks to our high-quality products and excellent customer service. We have obtained great reputation among our domestic and foreign customers
our products
our certification
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some more charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

Q: When will you reply after got my inquiries?
A: We will respond within 24 hours once get your inquiries.

Q: What certifications do you have?
A: We currently have CE， ISO and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.
