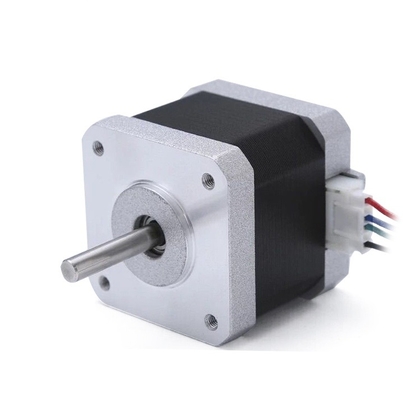

Zhongtian Nema 17 Stepper Motor 2 Phase 1.8 Degree 1.5A 3d Printer Stepper Motor Driver Hybrid Motor 17hs4401

60 Pieces
$4.20(60 - 599 Pieces) $4.10(600 - 5999 Pieces) $4.00(>=6000 Pieces)
Zhongtian Nema 17 Stepper Motor 2 Phase 1.8 Degree 1.5A 3d Printer Stepper Motor Driver Hybrid Motor 17hs4401
Features Gallery Product Description Request A Quote
Warranty: 3months-1year
Model Number: 17HS4401
Phase: 2
Type: Hybrid
Current / Phase: 1.5A
Product Name: Nema 17 Stepper Motor
Size: 42*42*40mm
Rated Current: DC 1.5A/Phase
Positioning Torque: 22 MN.m REF
Insulation Resistance: ≥100 MΩ (DC 500V)
Voltage: 12V-24V
Application: 3D Printer ,Medical Machine ,Robot
Weight: 0.28kg
Certification: Ce, ISO, RoHS, CCC
Basic Infomation
Certification: ce, ISO, RoHS, CCC
Model Number: 17HS4401
Payment & Shipping Terms
Packaging Details: PEARL COTTON and Carton
Supply Ability: 1000 Carton/Cartons per Day
Product Description
Product Description

Zhongtian Nema17 stepper motor 2 phase 1.8 degrees 1.5A 3d printer hybrid driver motor stepper step motor 17hs4401

Feartures & Benifits

  • NEMA8-NEMA42 frame size
  • High step accuracy and resolution
  • Low vibration and noise
  • Can be customized for winding current, shaft options and cables and connectors.
  • CE certified and ROHS compliant



Used for robots stepper motor,
Electronic automatic equipment stepping motor,
Medical instrument stepping motor,
Advertising instrument stepper motor,
Lighting& audio equipment stepper motor,
Printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.


Genaral Specification


 Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 20-220N
Max. axial force ---------------------------- 2-60N




How to choose a motor to match my machine?

Please give us the key parameters of the motor: holding torque, physical size (diameter ,length etc.),  voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.

If I need a special motor , can you manufacture?

Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution for you.

Can I order samples first?

We stock many of our standard models. If you would like to test a sample first, we are glad to send it.For customization it always takes 5 to 7 days.
